GLA-1000
产品叙述 产品规格 配件 订购信息 下载

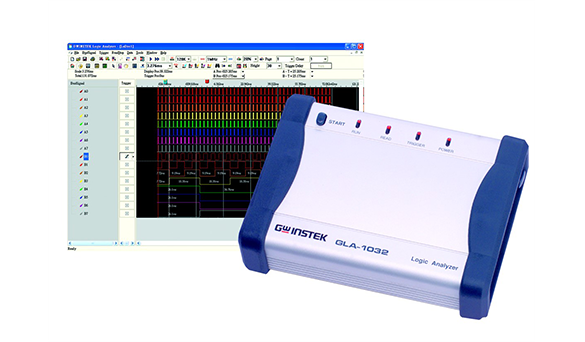

The GLA-1000 Series is a palm-sized PC based logic analyzer with functionality matching that of a desktop device. A maximum 32 channels, 32Mbits of data memory (GLA-1032), a 200MHz internal sampling rate and advanced trigger settings provide high accuracy and lengthy data analysis results. Features, such as Data-loss-less compression, Enable Qualifier, and Serial Bus Protocol Analyzer, provide you with a tool to adequately analyze today's complex digital systems. All data and configurations can be saved into a PC for further data analysis. The GLA-1000 Series operates over a high speed USB 2.0 connection and is fully powered by the USB bus.
The specifications apply when the GLA-1000 is powered on for at least 30 minutes under +20°C~+30°C.
|
|
GLA-1016 |
GLA-1032 |
GLA-1132 |
|
Channels |
16 |
32 |
32 |
|
MEMORY TOTAL/PER CHANNEL |
4Mbits/256kbits |
4Mbits/128kbits |
32Mbits/1Mbits |
|
INTERFACE |
USB 2.0 (1.1) |
||
|
OPERATING SYSTEM |
Win XP/Win Vista /Win 7 |
||
|
TIMING ANALYSIS |
Maximum 200MHz |
||
|
STATE ANALYSIS |
0.001Hz ~ 100MHz |
||
|
TRIGGER |
|||
|
Channel |
16 |
32 |
32 |
|
Condition |
Edge/Pattern |
||
|
Pre/Post trigger |
0%~100% |
||
|
Level |
1 |
||
|
Threshold |
+6V ~ -6V |
||
|
Accuracy |
±93mV |
||
|
Delay |
Time delay, Clock event delay |
||
|
Count |
1 ~ 65535 |
||
|
Page |
Maximum 8191 |
||
|
INPUT |
|||
|
Maximum Input Voltage |
±30V |
||
|
Impedance |
500kΩ/10pF |
||
|
Data Skew |
<1.5ns |
||
|
ENABLE QUALIFIER |
|||
|
Channel |
16 |
32 |
32 |
|
Enable Condition |
Don't Care ,High ,Low |
||
|
Enable Delay |
1~65535ms |
||
|
DATA |
|||
|
Compression Channels |
16 |
24 |
24 |
|
Compression Ratio |
Max.255 |
||
|
Signal Statistics |
Postive/Negative, Full cycle within length condition |
||
|
Protocol Analyzer |
I2C, RS-232C ,SPI |
||
|
CURRENT CONSUMPTION |
|||
|
Static |
Max. 200mA |
||
|
Working |
Max. 400mA |
||
|
POWER DISSIPATION |
|||
|
Static |
Max. 1W |
||
|
Working |
Max. 2W |
||
|
POWER |
|||
|
Interface |
USB |
||
|
Working Voltage |
4.5V~5.5V |
||
|
DIMENSIONS & WEIGHT |
|||
|
|
102(D) x 39 (H) x 137(W) mm ; Approx. 340g |
||

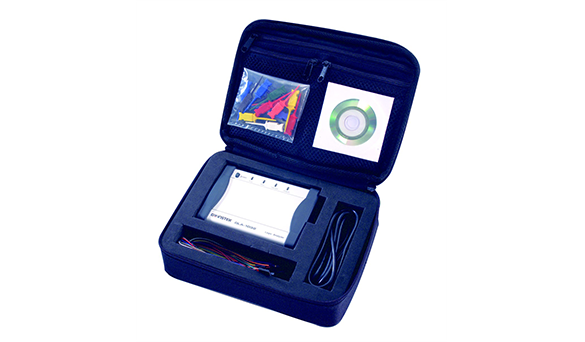

Probe - GTL-161 : 16 channel Testing probe x 1 for GTL-1016
Probe - GTL-161 : 16 channel Testing probe x 2 for GTL-1032/ 1132
Testing Gripper - GCP-201 x 1 : 20pcs. signal grippers for GLA-1016
Testing Gripper - GCP-201 x 2 : 40pcs. signal grippers for GLA-1032/ 1132
USB Cable - GTL-242 : USB cable (USB 2.0 Type A - Type B, 4P) x 1
